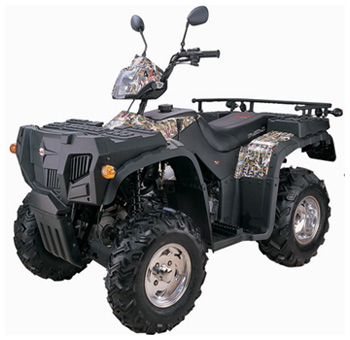

PM 250Z T-B SEMI-AUTO 4X4 |
|
 |
PM 250Z T-BWORK HARD PLAY HARD The PM 250Z T-B will haul you and your gear around, for hunting, trail riding or just straight up fun. This full size utility ATV can go to work for you. With its high torque 4 speed semi auto transmission, solid rear axel and 2X4 4X4 select this ATV is ready to get the job done.  |
Optional Accesories |
||||||
 |
 |
 |
 |
 |
||
Technical Specifications
Engine
| Type: | Single Cylinder, Liquid-cooled, 4-Stroke |
| Driving Mode: | 4WD |
| Ignition mode: | CDI |
| Compression proportion: | 8.7: 1 |
| Start mode: | Electric / Manual |
| Fuel tank capacity: | 12 L |
| Power: | 15.5HP / 6,500rpm |
| Max. torque | 12.5 Lbs-Ft/ 5,500rpm |
| Min. ground clearance: | 6.5" |
| Max. speed | 75 km/h |
| Power source: | 12V, 14Ah |
| Transmission: | 4 Speed with reverse, Semi automatic 2X4 4X4 |
| Cylinder size: | 71 x 58mm |
| Engine oil: | 1.6L |
| gear oil: | Front tank :0.4L Rear tank :0.25L |
| Lubrication: | press splash |
| Displacement: | 229.6 CC |
| Parking trig: | Mechanical lock |
| Gas cylinder number: | 1 |
Chassis
| Front wheels: | 22x 8-10 |
| Rear wheels: | 22 x 11-10 |
| Break type (F/R): | Disc / Disc |
| Front hanging: | Single arm-swing |
| Rear hanging: | Integral |
Dimensions
| Product dimensions : | 75" x 45" x 48" |
| Carton dimensions: | 85" x 46" x 35" |
| Wheelbase: | 47" |
| Height of seats: | 35" |
| Dry weight: | 595 Lbs |
| Load capacity: | 375 Lbs |
| Climbing degree: | 20° |
| Min. turning radius: | 114" |
| Max. number of riders: | 1 |
| Colours Available | Red, Blue, Green, Camoflage |
