PM 500 CHASE AUTO 4X4
PM 500 CHASE AUTO 4X4

PM 500 CHASE

FIRST CLASS

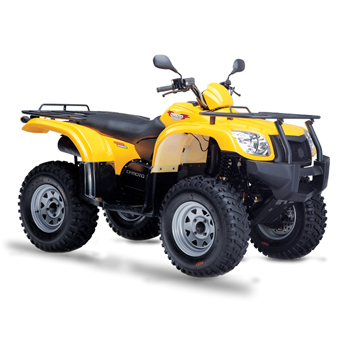

The CHASE500 is equipped with a brand-new CF188 engine independently developed by CFMOTO, featuring large cylinder bore, 4 valves with the advantages of durability, stronger power, lower noise, lower fuel consumption and environmental protection. The engine can fully meet the cooling requirement of long-time operation at low speed with high torque. The Chase 500 can scale a 50~60 degree steep slope easily with high gear and can plow through an impressive depth of water if only the muffler is not submersed. Turning on cobble ground gives another demonstration of the engine torque. Powered by a 500CC engine, the ATV can easily drive along a ladder-type path of 200m long and 40 degrees slope with high gear, even with a passenger! This ATV comes standard with aluminum alloy wheels and a 2500LBS winch.



Technical Specifications
Engine
Type:  Liquid-cooled 4-stroke,SOHC
Cylinder arragement:  Forward-inclined single cylinder
Carburetion:  MIKUNI BSR36-89
Displacement:  493 cm3
Bore x stroke:  87.5 × 82mm(3.44×3.23in)
Compression ratio:  10.2:1
Rated Power: 24Kw/7000 rpm
 Max. torque  36N.M/5500 rpm
Oil Capaxity:  2.2L
 Max. speed  ≥30km/h
 Power source:   12V, 6.5Ah
 Starting system:  Electric and recoil starter
 Lubrication system:  Wet sump
 Qty in 40GP:  20 units

Chassis
Overall length: 2120mm(83.5in)
Overall width: 1170mm(46.1in)
Overall height: 1230mm(48.4in)
Wheelbase: 1290mm(58.8in)
Minimum ground clearance: 275mm(11.1in)
Minimum turning diameter: 4500mm(177.2in)
Suspension:: F/R:Double wishbone
Transmission: CVT, P/R/N/H/L
Tire Size:F/R: F: AT25×8-12 38J R:AT25×10-12 45J
Brake Type: F:Dual disc brake R: Single disc brake
Front-rack Capacity: 35kg(77.2lb)
Fuel Capacity: 19L
Hitch Towing Capacity: 350kgf(772 lbf)
Rear-rack Capacity: 70kg(154.3 lb)
Dry weight: 337kg(743 lb)
