PM 500(2008) ATV AUTO 4X4 |
|||||||
|

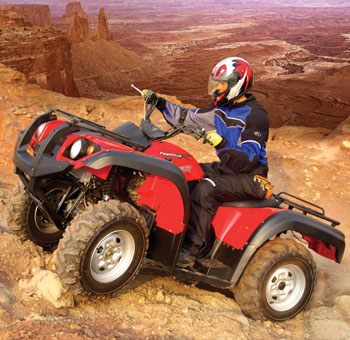

PM 500 BEARCLAWFOUR-WHEEL MUD LOVER The newly developed 500cc liquid-cooled, fully automatic, 4 stroke engine, long travel four wheel independent suspension and a phenomenal power-to-weight ratio, adds up to one serious and tough ATV. The Bearclaw come standard with aluminum alloy wheels and a winch. |
Optional Accesories |
||||||
 |
 |
 |
 |
 |
 |
 |
Photo Gallery
Technical Specifications
Engine
| Type: | 471CC Water cooled, 2-valve, 4-stroke, 1-cylinder |
| Bore X Stroke: | 3.4" x 3.3 |
| Compression Ratio: | 9:4:1 Ratio |
| Max. Power: | 22.8HP/5000-5500rpm |
| Max. Torque: | 35.0N.m/5000rpm |
| Carburetion: | PD33J-A |
| Ignition: | CDI |
| Starting: | Electric/pull start |
| Transmission: | Fully-Auto L-H-N-R-P |
| Drive Train: | Axle |
Chassis
| Suspension: | F: Independent double swing arm R: Independent double swing arm |
| Brakes: | F: Dual ventilated hydraulic disc R: Ventilated hydraulic disc |
| Tires: | F: AT25 x 8-12 radial R: AT25 x 10-12 radial |
| L x W x H: | 86.6" x 51.2" x 50" |
| Seat Height: | 34.3" |
| Wheelbase: | 53.7" |
| Ground Clearance: | 10.3" |
| Fuel Capacity: | 17L |
| Dry Weight: | 683 lbs |
| Colors: | Red, Black, Blue |
| Lighting: | F: 12V35W/35WX2, 12V5W R: 12v5W/21Wx1 Turning: 12V10W x 4 (F&R) |
